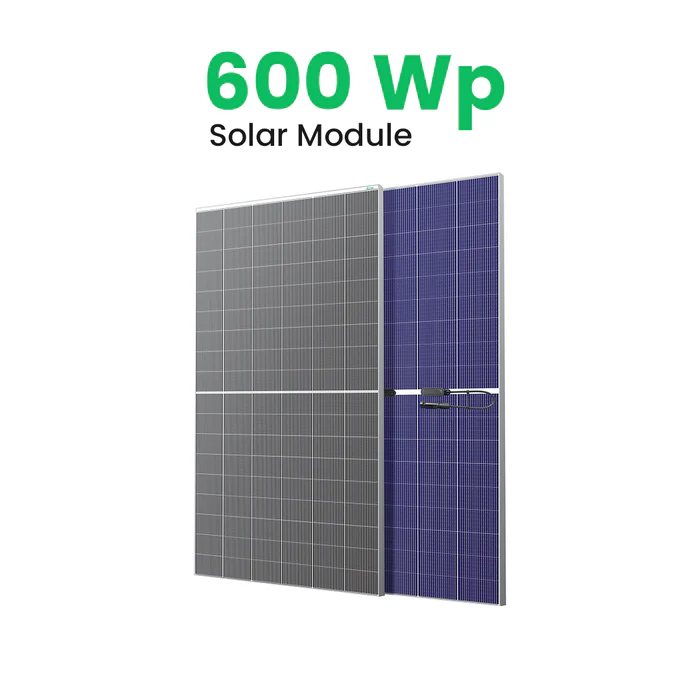

Loom Solar introduces the latest SHARK 600 Wp HJT solar panel developed for homes and businesses with a high conversion efficiency of up to 23.50%. It delivers its maximum power voltage 34.42V with maximum current 17.44 A, Powered by 108 high-efficiency solar cells, The front is protected with durable and weather-resistant tempered glass. Additionally, having an IP68-rated junction box. This module is made to fulfil modern needs efficiently with outstanding performance.
High Power & Efficiency: 600 Wp HJT module offers up to 23.50% efficiency with maximum power of 34.42 V.
More Energy with Bifacial Design: Up to 95% bifaciality, more power from the rear side.
Reliable & Long-Lasting: Anti-LeTID and Anti-PID protection, low power degradation and reducing the impact of micro-cracks.
Built for Tough Weather: Tested to IEC 61215 standards, including 35 mm ice-ball impact, and can handle heavy snow (5400 Pa) and strong winds (2400 Pa).
Long-Term Warranty Assurance:15-year product warranty on materials and workmanship, plus a 30-year linear power performance warranty.
Electrical Specifications
Peak Power Pmax (W)
600
Maximum Power Voltage Vmp (V)
34.42
Maximum Power Current Imp (A)
17.44
Open Circuit Voltage VOC (V)
40.61
Short Circuit Current ISC (A)
17.68
Module Efficiency (%)
23.50
Power Tolerance (W)
0+5W
No. of Bus Bars
18BB
*STC: automatic mass AM1.5, irradiance 1000 W/m2, cell temperature 25°C
Mechanical Specifications
Number of Cells
108 pieces (2*54)

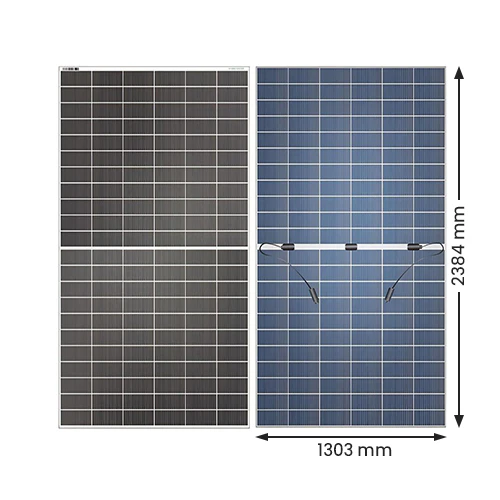

Module Dimensions
1960*1303*35mm
Weight
32.3 kg
Front Glass
2.0 mm, High Tempered coated glass
Back Glass
2.0 mm, Semi-tempered glass
Frame
Anodized aluminium alloy
Junction Box
IP68 rated
Cable
4.0 mm
No. of Diodes
3
Wind Pressure / Snow Pressure
2400 Pa / 5400 Pa
Connector
MC4
Warranty
The degradation in the first year is 1%, and from the second year onwards, the annual degradation does not exceed 0.30%
Product Warranty
15-year
Performance warranty
30-year
